Overview

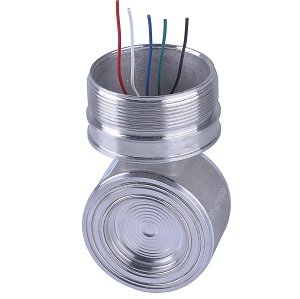

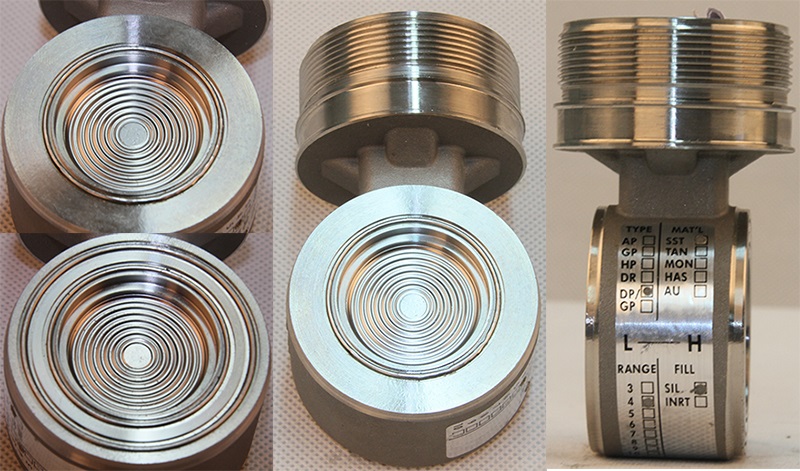

Capacitive
pressure sensor or differential pressure sensor; it is all welded construction
with stainless steel material. This kind of pressure sensor is to sense the
pressure or differential pressure via the oil filling in the sensor .It can
sensor minimum 0-0.16~1.6Kpa differential pressure or 0-16~40Mpa gauge pressure
with high accuracy.The sealed
chamber integrated temperature diode, this diode supplied real time temperature
parameters for the capacitance pressure transducer, and it provides temperature
compensation for the capacitance pressure transmitters.
Specifications
Accuracy: ± 0.1%
Annual Stability: 0.2% of max range
Temperature Range:(-40~104) ℃
Temperature Affect: ±0.25%/55℃ of zero error
Range Error: ±0.5%/55℃ of full range
Diaphragm Material: Stainless steel 316L, Hastelloy-C, Monel, Tantalum, Titanium
Model Selection
|
Model |
Description |
||||||
|
DR |
Low differential pressure |
||||||
|
DP |
Differential Pressure |
||||||
|
GP |
Gauge Pressure |
||||||
|
HP |
High Static Pressure |
||||||
|
AP |
Absolute Pressure |
||||||
|
Model |
Pressure Range |
Static Pressure (MPa) |
DR |
AP |
GP |
DP |
HP |
|
2E |
0-0.16~1.6KPa |
2.5 |
* |
|
|
|
|
|
3E |
0-1.6~6KPa |
4 |
|
|
* |
* |
* |
|
4E |
0-6~40KPa |
10 |
|
* |
* |
* |
* |
|
5E |
0-40~200KPa |
|
* |
* |
* |
* |
|
|
6E |
0-0.18~1MPa |
|
* |
* |
* |
* |
|
|
7E |
0-0.6~2.5MPa |
|
|
* |
* |
* |
|
|
8E |
0-2~8MPa |
|
|
* |
* |
* |
|
|
9E |
0-6~20MPa |
|
|
* |
* |
|
|
|
0E |
0-16~40MPa |
|
|
|
* |
|
|
|
HP4E |
0-6~40KPa |
25/32 |
|
|
|
|
|
|
HP5E |
0-40~200KPa |
|
|
|
|
|
|
|
HP6E |
0-0.18~1MPa |
|
|
|
|
|
|
|
Mode |
Diaphragm Material |
||||||
|
2 |
Stainless steel 316L |
||||||
|
3 |
Hastelloy-C |
||||||
|
4 |
Monel |
||||||
|
5 |
Tantalum |
||||||
|
6 |
Titanium |
||||||
