Stainless Steel Pressure Gauge OverviewStainless steel pressure gauges are widely applied in the fields of petroleum, ch...

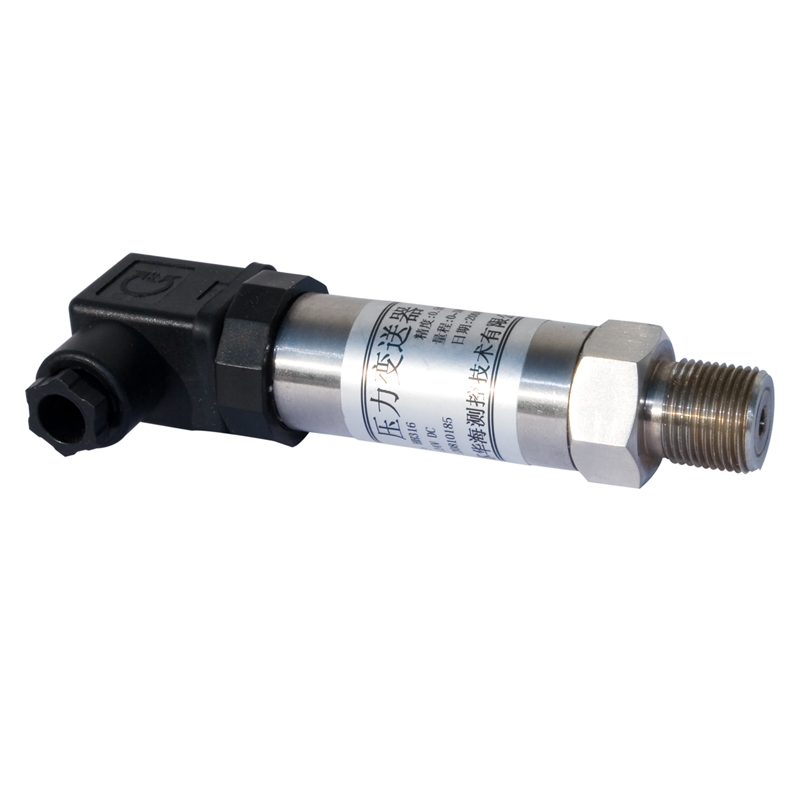

SH 316 series Diffusive silicon pressure transmitters choose imported qualified silicon pressure sensor components , and employ dedicated integration module , through fine temperature shift, zero and non-linearity compensation to realize accurate pressure measurement of liquid, gas and steam.
|
Pressure Type |
Gauge pressure(G),Absolute Pressure(A),Seal Pressure (S),Negative Pressure (N) |
|
Compensation Temp. |
(-10~70)℃ |
|
Working Temperature |
(-20~85)℃, themedium should not besolidified. |
|
Upper limit |
Over Load |
Stability |
|
< 50Kpa |
(2~5) times |
< 0.5% FS/year |
|
≥50Kpa |
(1.5~3)times |
< 0.2% FS/year |
|
|

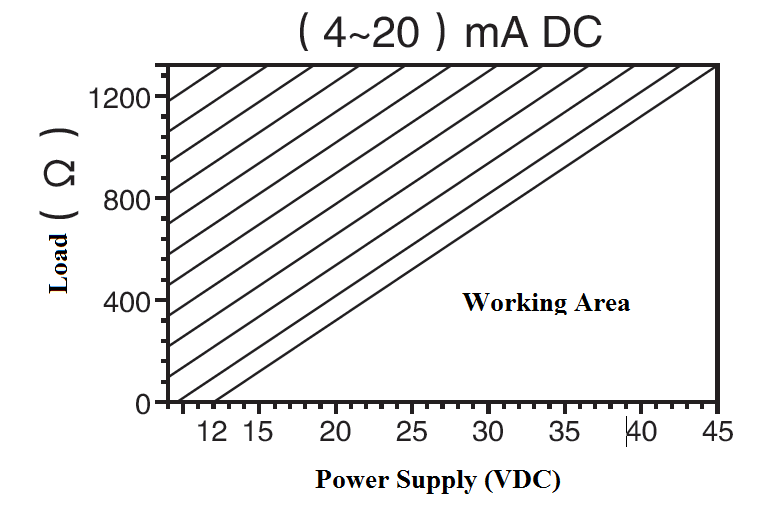

1. Load is related to power supply, please refer to left figure, load impedance R≤(V-12)/0.026Ω 2. When with digital display, the load ability will decrease 3. Explosive pressure transmitter power supply is carried outaccording to the related request. |
SH316 Pressure Transmitters Model Selection
|
Item |
Code |
Description |
|
Type |
A |
4-20mA Output( 0.5% accuracy)/2 wire |
|
S |
Hart Protocol (0.25% accuracy)/ 2 wire |
|
|
N |
Others(Specify) |
|
|
Product |
SH316 |
Diffusive silicon pressure transmitter |
|
Sensor type |
A1 |
Diffusivesilicon sensor |
|
Pressure Type |
A |
Absolute pressure |
|
G |
Gauge Pressure |
|
|
Digital Display |
1 |
Without display |
|
3 |
Digital Display |
|
|
Measuring Range |
|
Please refer to measuring range table 3 |
|
Processconnections |
1 |
M20* 1.5 |
|
2 |
1/2”NPT |
|
|
3 |
Others(please specify ) |
|
|
Explosion proof |
N |
Nonexplosion proof |
|
I |
Intrinsically safe Exib II CT5 |
|
|
E |
Explosion proof Exd II BT5 |
|
|
Electrical Connection |
C H N |
Direct cable (standard 1m cable) Hirschmann plug N(others ,please specify) |
|
Others (options) |
T |
Tri-clamp connection (specify size ) |
|
R |
High Temp. Radiator ( max bear 150℃) |
|
|
D |
Diaphragm seals (specify size ) |
SH316 PressureTransmitters Measuring Range Table
|
Gauge Pressure Code |
Absolute Pressure Code |
Measuring Range |
Range Adjustment |
|
G01 |
|
(0~4)kPa |
(1.6~5)kPa |
|
G02 |
|
(0~6)kPa |
(4~10)kPa |
|
G03 |
|
(0~10)kPa |
(4~20)kPa |
|
G04 |
|
(0~16)kPa |
(6~20)kPa |
|
G05 |
A05 |
(0~20)kPa |
(8~35)kPa |
|
G06 |
A06 |
(0~25)kPa |
(10~35)kPa |
|
G07 |
A07 |
(0~30)kPa |
(12~35)kPa |
|
G08 |
A08 |
(0~35)kPa |
(14~35)kPa |
|
G09 |
A09 |
(0~40)kPa |
(16~70)kPa |
|
G10 |
A10 |
(0~60)kPa |
(24~70)kPa |
|
G11 |
A11 |
(0~100)kPa |
(40~100)kPa |
|
G12 |
A12 |
(0~160)kPa |
(64~200)kPa |
|
G13 |
A13 |
(0~200)kPa |
(80~200)kPa |
|
G14 |
A14 |
(0~250)kPa |
(100~350)kPa |
|
G15 |
A15 |
(0~400)kPa |
(160~700)kPa |
|
G16 |
A16 |
(0~600)kPa |
(240~700)kPa |
|
G17 |
A17 |
(0~1.0)MPa |
(0.4~1.0)MPa |
|
G18 |
A18 |
(0~1.6)MPa |
(0.64~2.0)MPa |
|
G19 |
A19 |
(0~2.0)MPa |
(0.8~2.0)MPa |
|
G20 |
A20 |
(0~2.5)MPa |
(1.0~3.5)MPa |
|
G21 |
A21 |
(0~4.0)MPa |
(1.6~4.0)MPa |
|
G22 |
A22 |
(0~6.0)MPa |
(2.4~7.0)MPa |
|
G23 |
A23 |
(0~10)MPa |
(4.0~10)MPa |
|
G24 |
A24 |
(0~20)MPa |
(8.0~20)MPa |
|
G25 |
A25 |
(0~30)MPa |
(12~35)MPa |
|
G26 |
A26 |
(0~40)MPa |
(16~40)MPa |
|
G27 |
A27 |
(0~60)MPa |
(24~60)MPa |
|
G28 |
|
(-2~2)kPa |
(-1.6~2.5)kPa |
|
G29 |
|
(-5~5)kPa |
(-3.0~5.0)kPa |
|
G30 |
|
(-10~10)kPa |
(-6.0~10)kPa |
|
G31 |
|
(-20~20)kPa |
(-13~20)kPa |
|
G32 |
|
(-50~50)kPa |
(-33~50)kPa |
|
G33 |
|
(-100~60)kPa |
(-66~100)kPa |
|
G34 |
|
(-100~100)kPa |
(-66~100)kPa |
|
G35 |
|
(-100~150)kPa |
(-100~200)kPa |
|
G36 |
|
(-100~300)kPa |
(-100~350)kPa |
|
G37 |
|
(-100~500)kPa |
(150~500)kPa |
|
G38 |
|
(-100~900)kPa |
(0.24~1.0)MPa |
|
G39 |
|
(-100~1.5)MPa |
(0.5~1.9)MPa |
|
G40 |
|
(-100~2.0)MPa |
(0.5~2.0)MPa |
