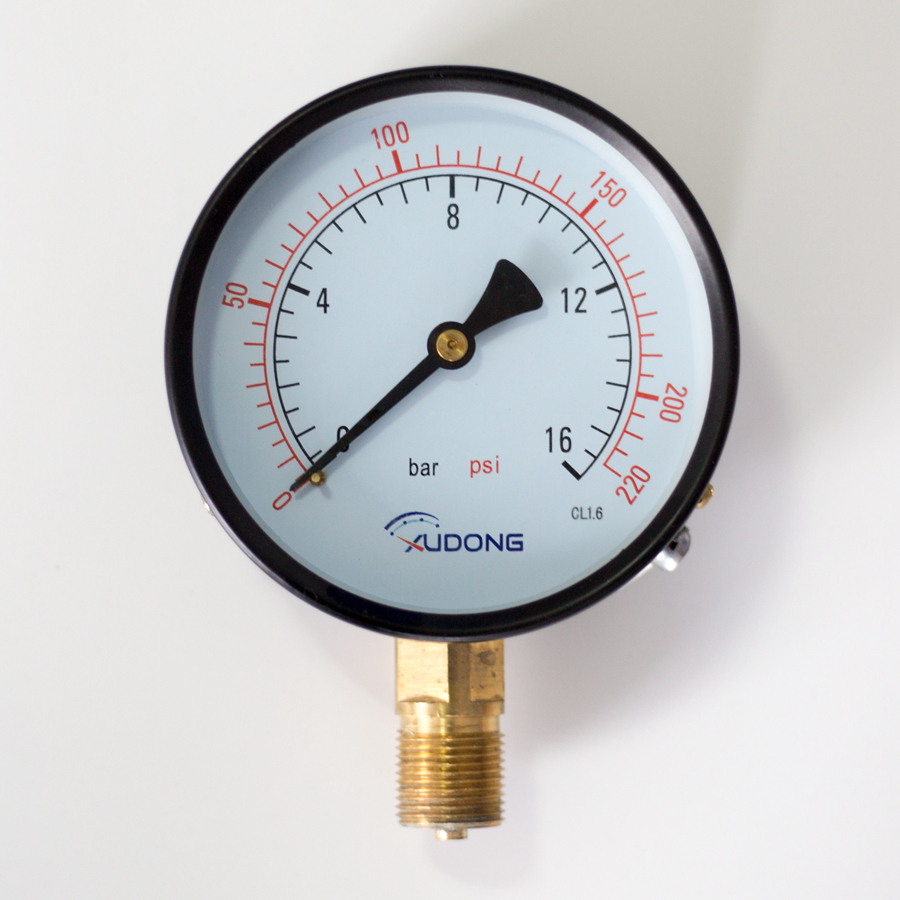

Economical Bourdon Tube Pressure Gauge OverviewY series Economical bourdon tube Pressure Gauge is suitable for the non-e...

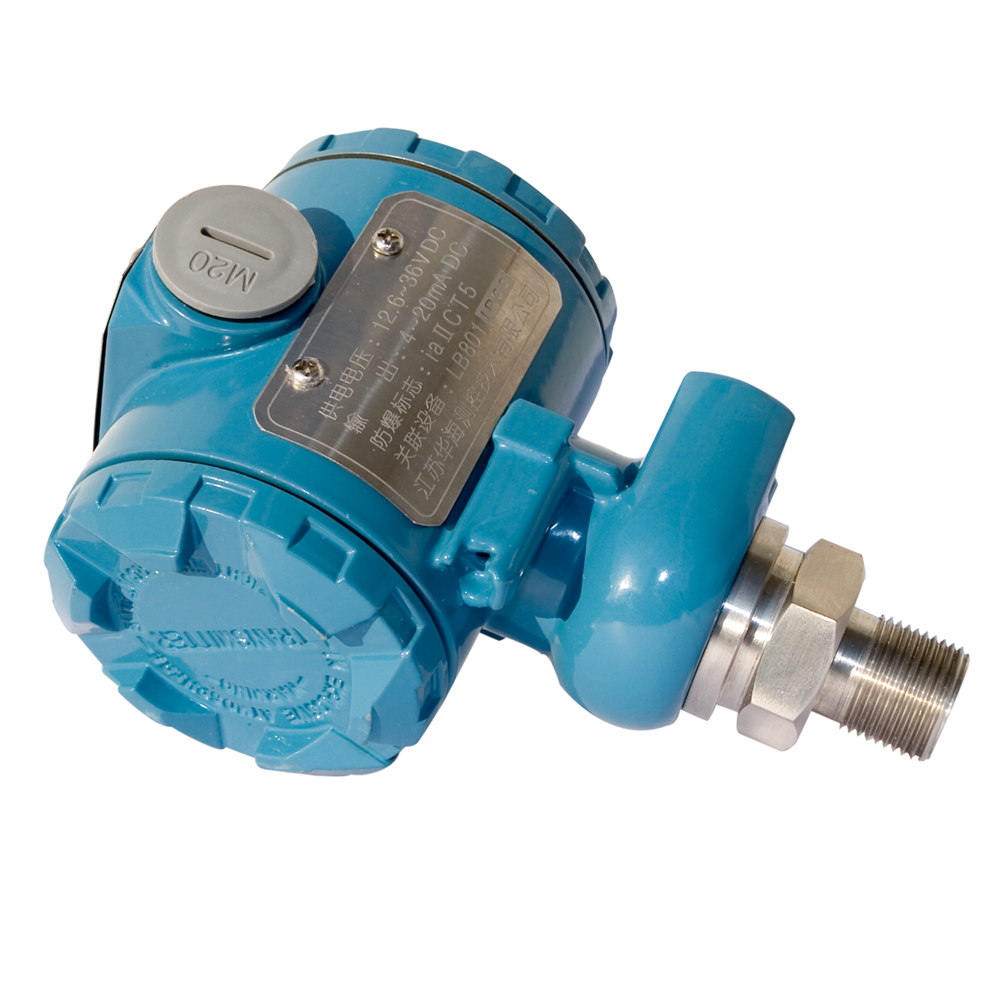

SH 308 series Diffusive silicon pressure transmitters choose imported qualified silicon pressure sensor components , and employ dedicated integration module , through fine temperature shift, zero and non-linearity compensation to realize accurate measurement of liquid, gas and steam. It is normally used as gauge pressure sensor. We are a pressure transmitter supplier; provide cheap pressure transmitters with robust quality.
|
Accuracy |
0.5% F.S/0.25 % F.S (Hart Protocol) |
|
Measuring Range |
-95Kpa ~ 60Mpa |
|
Power supply |
24VDC |
|
Medium |
Liquid, gas and steam |
|
Environment Temperature |
-30~70℃(can bear 80℃in short time) |
|
Medium Temperature |
-30~80℃(with high Temp. Radiator max 150℃) |
|
Corrosion Proof Material |
316 SST |
|
Effect of temperature |
< 0.02%/℃ |
|
Load Resistance |
< 750 ohm |
|
Overload ability |
Triple span |
|
MechanicalProtection |
IP65 |
|
Humidity |
≤95% RH |
|
Output |
2 wire 4~20mA/ 4 wire 0~10 mA DC |
|
Weight |
1 kg |
|
Item |
Code |
Description |
|
Type |
A |
4-20mA Output( 0.5% accuracy)/2 wire |
|
S |
Hart Protocol (0.25% accuracy)/ 2 wire |
|
|
N |
4 wire 0~10 mA DC output /4 wire |
|
|
Product |
SH308 |
Diffusive silicon pressure transmitter |
|
Sensor type |
A1 |
Diffusivesilicon sensor |
|
Pressure Type |
A |
Absolute pressure |
|
G |
Gauge Pressure |
|
|
Digital Display |
1 |
Without display |
|
3 |
Digital Display |
|
|
Measuring Range |
1 |
0~35Kpa |
|
2 |
0~100Kpa |
|
|
3 |
0~200Kpa |
|
|
4 |
0~350Kpa |
|
|
5 |
0~700Kpa |
|
|
6 |
0~2.0Mpa |
|
|
7 |
0~3.5Mpa |
|
|
8 |
0~7Mpa |
|
|
9 |
0~20Mpa |
|
|
0 |
0~60Mpa |
|
|
Processconnections |
1 |
M20* 1.5 |
|
2 |
1/2”NPT |
|
|
3 |
Others(please specify ) |
|
|
Explosion proof |
N |
Nonexplosion proof |
|
I |
Intrinsically safe Exib II CT5 |
|
|
E |
Explosion proof Exd II BT5 |
|
|
Others (options) |
T |
Tri-clamp connection (specify size ) |
|
R |
High Temp. Radiator ( max bear 150℃) |
|
|
D |
Diaphragm seals (specify size ) |
