Insertion type electromagnetic flow meter
-

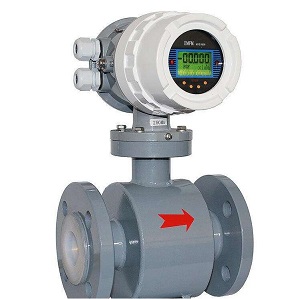

In-line mag flow meter takes measurement the whole pipeline section flow velocity where the mag sensor is mounted. It me...
-
Battery powered magmeter can measure conductive medium,such as water ,sewage and so on.The battery can work 3-6 years an...

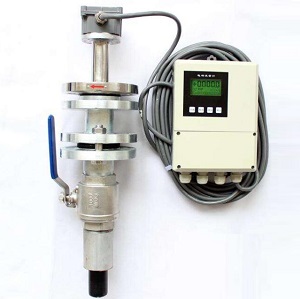

Insertion probe electromagnetic flow meter is suitable for pipeline size over 8 inches; it is ideal solution for large pipe size conductive liquid flow measurement ,such as waste water, portable water, raw water, clean water, municipal water. Insertion magnetic water meter takes measurement fluids velocity in a specific area of the pipe line, which will represent the whole pipeline fluids flow rate. It is based on Faraday’s Induction Law and has many wide applications in lot industries.
Features and Specification
✔ Insertion mag flow sensor for easy installation comparing to in line type mag flow sensor
✔ Save price cost for large size flow measurement comparing with in-line electromagnetic flow meter
✔ Accuracy measurement: 1.5%
✔ All stainless steel 304 material construction
✔ Suitable for line size from DN200 to DN3000
✔ Option with HART, MODBUS,4-20mA or pulse output
✔ No moving parts and simple maintenance
✔ Remote mag flow transmitter or compact mag flow transmitter
