SKRD56 Series Radar level transmitter

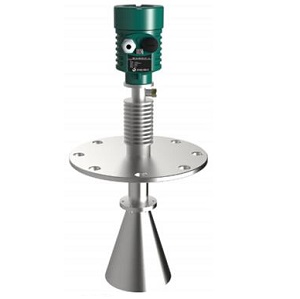

SKRD56 Series Radar level transmitter

Application: Suitable for blast furnace level measurement, can be used with thick tank top or long installation pipe.
Max. range: 30m
Process connection: Flange
Process temperature: -40~500°C
Process pressure: -1.0~3bar
Repeatability:±15mm
Accuracy: ±2mm
Frequency range: 6.8GHz
Explosive rating: Exib IIC T6 Gb
Protection level: IP67
Output signal: 4~20mA/HART(2 wire)
