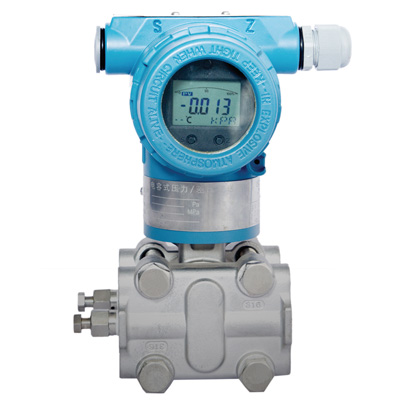

SH Series Pressure transmitter/DP transmitters

Code

Types

DR

DP

GP

HP

AP

DR

Low differential pressure

*

DP

Differential Pressure

*

GP

Gauge Pressure

*

HP

High Static Pressure

*

AP

Absolute Pressure

*

Code

Measuring Range

DR

DP

GP

HP

AP

2F

(0-0.16~1.5)Kpa

*

3E

(0-1.6~6)Kpa

*

*

*

4E

(0-6~40)Kpa

*

*

*

5E

(0-40~200)Kpa

*

*

*

*

6E

(0-0.16~1)Mpa

*

*

*

*

7E

(0-0.4~2.5)Mpa

*

*

*

*

8E

(0-1.6~8)Mpa

*

*

9E

(0-4~20)Mpa

*

0E

0-6~40)Mpa

*

Code

Accuracy

1

0.1 %

2

0.2 %

3

0.5 %

Code

Explosion Proof

P

Normal Type without Explosion proof

d

Explosion proof  Exd II BT4

i

Intrinsically safe explosion-proof  Exia IIC T6

Code

Static Pressure

1

≤2.5Mpa

2

≤6.4Mpa

3

≤10 Mpa

4

≤16 Mpa

5

≤25 Mpa

6

≤32 Mpa

Code

Display

/

No digital display

M5

Digital Display

Code

Output

E

(4-20mA)

S

(4-20mA) & Hart

Code

Material

Flange/Connector

Drain/vent valve

Isolation  Diaphragm

Filled Liquid

22

316 sst

316 sst

316L

Silicon oil

23

316 sst

316 sst

Hastelloy C

Silicon oil

24

316 sst

316 sst

Monel

Silicon oil

25

316 sst

316 sst

Tantalum

Silicon oil

Code

ProcessConnector

C0

1/4”NPT (F)

C1

1/2”NPT(M)

C2

M20×1.5(M)

Code

Mounting Bracket

B1

Bent Bracket for pipe mounting (2” pipe)

B2

Bent Bracket for plate mounting

B3

Flat bracket for pipe mounting (2” pipe)
