We supply in-line mechanical or digital diesel fuel flow meter. Liquid turbine flow meter, oval gear flow meter also coriolis flow meter is often requested flow instruments for diesel flow measurement. Oil flow meter is from China leading flow meter manufacture with rugged construction also fast delivery time.
The most important use of diesel is for diesel engines for vehicles and ships. Compared with gasoline, diesel has high energy density and low fuel consumption rate. Diesel fuel has low energy consumption, so some small cars and even high-performance cars also use diesel. Diesel is flammable, volatile, and insoluble in water, soluble in alcohol and other organic solvent. Customers need diesel flow instruments to monitor diesel fuel consumption in the automotive, marine, portable fueling and power generation industries and so on.
Oval gear flow meter for diesel flow measurement
-
Positive displacement flow meter (PD flow meter)
-
Can be made into mechanical type diesel oil flow meter or with flow transmitter option
-
High accuracy, bulky size and robust construction
-
In-line fuel flow meter with various material options, cast iron, cast steel, stainless steel
-
No straight pipeline needed when installation the oil flow sensor
-
High accuracy: 0.5% or 0.2% option
-
Can with various outputs, such as 4-20mA, pulse or Hart, Modbus
-
Sensor size from DN10 to DN200 (8 inch diesel fuel flow meter)
Turbine flow meter (TUF) for diesel flow measurement
-
Low cost and compact size digital diesel flow meter
-
Option with electronic displays: Battery operated or 12 or 24V DC external power
-
Stainless steel oil flow meter
-
Various process connection: thread, flange or tri-clamp connection
-
Sensor size from DN6 to DN200 (8 inch turbine flow meter)
-
Various sizes available: from simple and economical turbine sensor to turbine transmitter with various outputs and digital display
Coriolis mass flow meter for diesel oil flow metering
-
Indeed direct accurate mass flow measurement
-
High accuracy: 0.15%~0.2%
-
Various parameters detected by only one Coriolis sensor: diesel mass flow, density, temperature
-
Reliable and excellent performance, used in custody transfer
-
All 316L stainless steel material
-
Inline diesel fuel flow meter
Coriolis Mass Flow Meter2017/04/12Coriolis Flow Meters for molasses,syrup,slurry,glucose,steam flow measurement.Buy China Coriolis meter in low price from Silver Instruments.view
Liquid Turbine Flow Meter2017/04/12Liquid Turbine flow meter is a kind of low cost digital flow meter for diesel ,petrol,water,palm oil. it is for clean, low viscosity ,non-corrosive liquid.view
Oval Gear Flowmeter2017/04/12Oval Gear Flow meter is for diesel, crude oil, resin, fuel, heavy oil flow measurement. PD flow meter is with mechanical register or digital display, Inquiry Price now.view

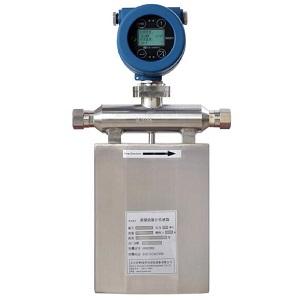

High pressure Coriolis flow meter2019/06/11SH-CMF Series Coriolis flow meter can max work on 700 bar operation high pressure. The high pressure type flow sensor is needed in such as chemical injection or hydrogen fueling station. Coriolis flow...view
