Overview

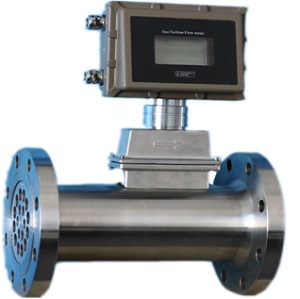

Natural gas is a kind of high-quality energy and chemical raw material; we need precise metering for natural gas. The main component of natural gas is methane; Gas turbine flowmeter is a very good natural gas metering instruments. Gas turbine flow meters are suitable for non-corrosive gas measurements such as natural gas, propane, fuel gas and feed gas. The turbine meter measures volumetric flow based on gas turbine flowing passed a free-spinning rotor, with each revolution agreeing with a specific volume of gas or air.
Why we need temperature and pressure correction for natural gas flow meter ?
When the gas turbine flowmeter is measured in the pipeline, the density of natural gas varies with temperature and pressure. For accurate measurement, it is necessary to simultaneously track the temperature and pressure of natural gas, and convert the volume flow under different working conditions into a standard state or an agreed state volume flow. The gas turbine flowmeter can integrate temperature, pressure and flow sensors, and track and detect natural gas temperature and pressure and perform automatic compensation and compression factor correction calculation. Therefore, it has excellent low-pressure and high-pressure metering performance.
Features
✔ High precision, good repeatability, low pressure loss, good seismic performance
✔ In-line volume flow meter
✔ High quality bearings, low frictional resistance and good sealing
✔ The gas turbine flow instrument has pulse signal and analog signal output, which can have RS485 communication interface
✔ Low power consumption can be powered by internal battery, or external power supply;
✔ With real-time data storage function, it can prevent data loss when battery is replaced or suddenly power-off
✔ Gas turbine flow meter with explosion-proof
✔ Low price cost gas flow meter
Technical Parameters
✔ Medium: clean, no impurities, medium and low flow rate natural gas
✔ Flow sensor range: 20mm (3/4 inch) ~ 400mm (16 inch)
✔ Temperature pressure correction/compensation function can be selected
✔ Process connection: threaded or flanged
✔ Accuracy: ±1.5%R, ±1.0%R
✔ Range ratio: 1:10~1:30
✔ Working power supply: built-in lithium battery 3.6VDC, external 24VDC
✔ Natural gas temperature: -20~60 °C,
✔ Gas turbine material: Housing: 304 stainless steel, impeller: anti-corrosion ABS or aluminum alloy
Gas Turbine Flow Meter2017/04/12Robust Gas flow meter for natural gas,LPG,biogas flow measurement.Inquiry Gas TUF Flowmeter price with EVC directly from China manufacture.view
Gas Turbine Flow Meter with Temp & Press. compensation2018/08/27SGW-D series Gas turbine flow meter can be used to measure clean air or gas, such as natural gas, nitrogen gas.,etc. The best part of SGW series is that it can have integral temperature and pressure c...view

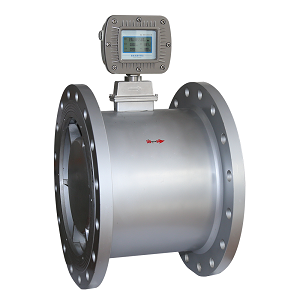

In-line large size gas turbine flow meter2019/07/30DN350 (14 inches) \DN400 (16 inches) large size gas turbine flow meters can measure the flow of gas or air in closed pipeline. It can measure low pressure or high pressure gas. It is widely used for t...view

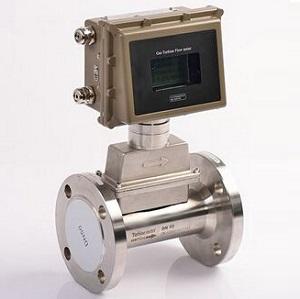

Inline natural gas flow meter2019/07/26In-line flow meters which suitable for natural gas flow metering include gas turbines flow meter, vortex flow meters and thermal dispersion flow meter. These in-line natural gas flow meters all have e...view
