Micro low flow Coriolis flow meter

Micro Coriolis flow meter provides the accurate mass flow measurement of low flow fluids in small lines, the micro flow rate can be as low as 0~40 kg/hr, It is operated base on the Coriolis force principle, and mini mass flow meter can be used in tough applications or custody transfer . Silver Automation Instruments supply low cost Coriolis flow meter with stable functions and good quality from China coriolis mass flow meter manufacturers.

Features

✔ Direct mass flow measurement without any temperature and pressure compensation
✔ Multi parameters measurement, such as mass flow ,density, concentration, temperature and so on
✔ High accuracy, measurement result is not affected by laminar or fluids profile
✔ Can be used for difficult fluids measurement, such as high viscosity fluids, or liquid mix gas fluids
✔ No moving parts and little maintenance is needed
✔ Stainless steel 316L material Coriolis meter sensor

Specification

✔ Miniature Coriolis sensor size:3mm (1/8 inch),6mm (1/4 inch),8mm(8/25 inch)
✔ Process connection: weld joints
✔ Fluids Temperature range :-50°C~ +350°C,-58℉~662℉
✔ Fluids pressure: 0~320 bar
✔ Output: 4~20mA current, 0~10KHz current,RS485 Modbus ,Hart
✔ Fast response :0.1s～5s,

Micro Flow range table

DN	Flow Range	Operation Pressure	Process Connection
3mm	0~40 kg/h	0~32 Mpa	Weld Joints Φ6×1.5
6mm	0~100 kg/h	0~25 Mpa	Weld Joints Φ10×2
8mm	0~200kg/h	0~20 Mpa	Weld Joints Φ10×1

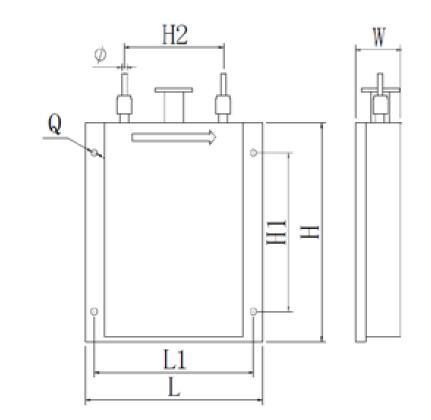

Size and Dimensions
