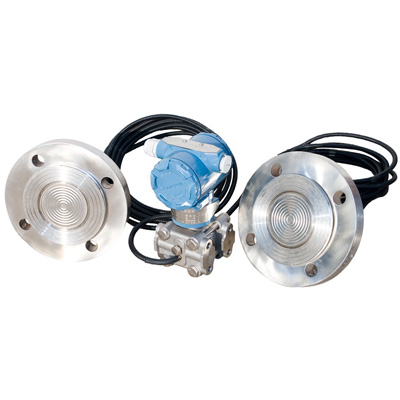

SHDP/GP Differential Pressure/Pressure Transmitter with Remote Diaphragm seals provides a kind of reliable measuring way...
Ultrasonic Level Meter OverviewHL Ultrasonic level meter is non contact liquid level sensor for liquids and solids level...

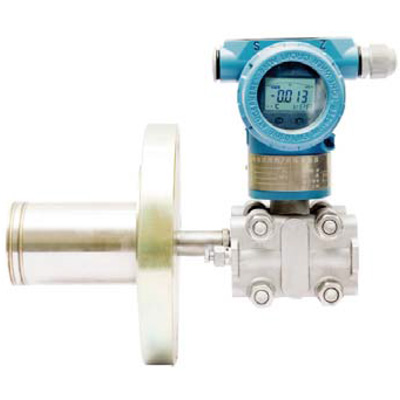

SHLT (smart) flange type level transmitter can carry on accurate measurement of level and density for all kinds of containers. Flush flange and extended flange available, diaphragm seal direct contacts with medium without impulse line.
Features:
a.Application: open or sealed tank level
b.Accuracy：0.1%,0.2%,0.5%
c.Measuring Range: 6Kpa ~20Mpa
d.Measuring Type: Flush flange and extended flange
e.Mounting: Direct mount and side mount
Model Selection
|
Code |
|
|
SHLT |
Silver Capacitance Level Transmitter |
|
Code |
Measuring Range |
|
4E |
(0-6~40)Kpa |
|
5E |
(0-40~200)Kpa |
|
6E |
(0-0.16~1)Mpa |
|
7E |
(0-0.4~2.5)Mpa |
|
8E |
(0-1.6~8)Mpa |
|
9E |
(0-4~20)Mpa |
|
Code |
Accuracy |
|
1 |
0.1% |
|
2 |
0.2% |
|
3 |
0.5% |
|
Code |
Explosion Proof |
|
P |
Non-explosion proof |
|
d |
Explosion proof ExdII BT4 |
|
i |
Intrinsically safe explosion-proof Exia IIC T6 |
|
Code |
Display |
|
/ |
No display |
|
M5 |
LCD display |
|
Code |
Output |
|
E |
(4-20mA) output |
|
S |
(4-20mA) output & Hart Protocol |
|
Code |
Flange size |
|
A |
DN50 |
|
B |
DN80 |
|
C |
DN100 |
|
D |
Special |
|
Code |
Extended Length |
|
L0 |
0 mm (flush Flange) |
|
L1 |
50 mm |
|
L2 |
100 mm |
|
L3 |
150 mm |
|
L4 |
Special |
|
Code |
Diaphragm Seal Material |
|
2 |
316L Stainless steel |
|
3 |
Hadtelloy Alloy C |
|
4 |
Monel |
|
5 |
Tantalum |
|
Code |
Mounting |
|
S |
Side mounting |
|
D |
Direct mounting |
|
Code |
Process Connection |
|
C0 |
1/4”NPT (F) |
|
C1 |
1/2”NPT(F) |
|
C2 |
1/2”NPT(M) |
|
C3 |
M20×1.5(M) |
|
Code |
Mounting Bracket |
|
B1 |
Bent Bracket for pipe mounting (2” pipe) |
|
B2 |
Bent Bracket for plate mounting |
|
B3 |
Flat bracket for pipe mounting (2” pipe) |
