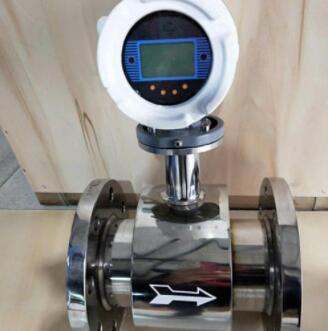

EMF flow meter for 10% KOH Solution and NH4OH Solution (7-9 pH Value)
Specifications
Excitation
:
Pulsed DC
Material of Construction:
Metering tube, flange and electrodes in SS304 L/ SS316. PTFE Liner.
Display LCD
:
Digital display 4 digits for flow rate & 8 digits for totalizer. (Averaging of display for oscillating flow can be present)
Alarm
:
High and Low alarm set points with contactors, 1 AMP Settable Over Entire Range: Empty pipeline indication can be available.
Accuracy
:
+/- 0.5% of FS
Stability
:
+/- 0.25% FS for 1 year.
Repeatability
:
+/- 0.25% FS for 1 year.
Linearity
:
+/- 0.5% of FS
Output
:
4~20mA DC Isolated output to drive at least 600 ohms load
Electromangetic flow meter with HART
:
HART Communication optional.
Power Supply
:
24 V DC
Memory Back Up
:
Non Volatile memory / Battery backup for retaining programmed data.
Protection Class
:
IP65. Housing epoxy coating Alkali resistant.
Pressure rating
:
Maximum pressure rating shall be 10 kg/cm2
Duty
:
For continuously operating plant
Magnetic flow meter size avaiable: DN10 to DN2000, normally request 1" size mag meter or 2" mag meter
Accessories
:
1) Reducer or expander if required can be provided by the supplier.
2) Grounding ring/Electrode can be provided.
