4 channel paperless recorder

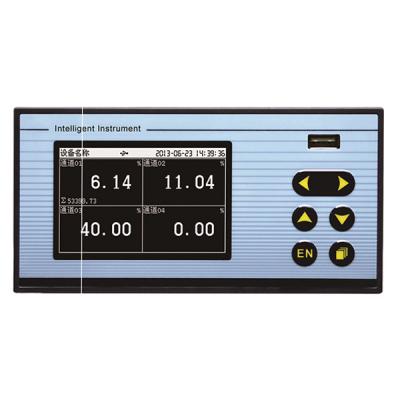

SX 2000 Series,3.5 inch,black screen

  • Size: 3.5 inch, LCD display (320×200points)
  • Dimensions: 160 (W) × 80 (H) × 100 (D) mm
  • Display Color: Black/white
  • Max 4 universal channels
  • Max 4 relay alarm outputs
  • RS485 or RS 232 interface
  • USB interface
  • Ethernet function available

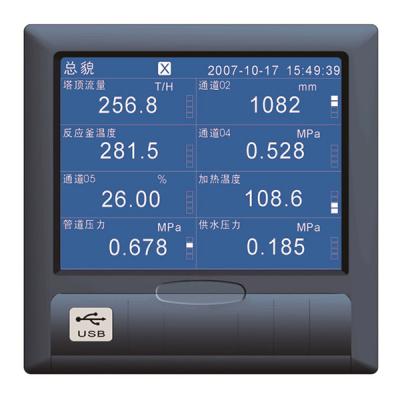

SX5000 Series,5.6 inch, blue screen

  • Size: 5.6 inch, LCD display (320×234 points)
  • Dimensions: 144 (W) × 144 (H) × 220 (D) mm
  • Display Color: Blue/white
  • 4 universal channels, extended to 16 channels
  • Each channel has max 4 alarms
  • RS485 or RS 232 interface
  • USB interface
  • Ethernet function available
  • 1-4 channels 4~20mA outputs
  • High accuracy: ± 0.2%.
  • 1~16 channels

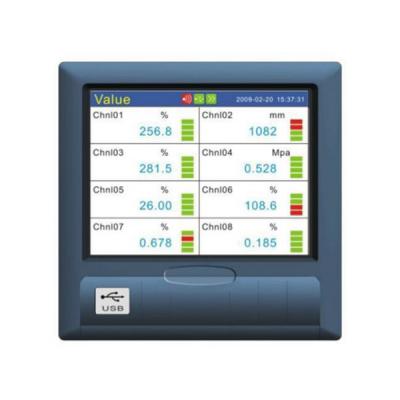

SX6000 Series,5.6 inch, color screen

  • Size: 5.6 inch, LCD display (320×234 points)
  • Dimensions: 144 (W) × 144 (H) × 220 (D) mm
  • Display Color: Color
  • 4 universal channels, extended to 16 channels, each channel is well isolated
  • Each channel has max 4 alarms
  • RS485 or RS 232 interface
  • USB interface
  • Ethernet function available
  • 1-4 channels 4~20mA outputs
  • Free data management software view in PC
  • 1~16 channels

SX8000 Series,10.4 inch, color screen

  • Size: 10.4 inch, LCD display (640×480 points)
  • Dimensions: 288 (W) × 288 (H) × 169 (D) mm
  • Display Color: Color
  • 4 universal channels, extended to 40 channels, each channel is well isolated
  • Each channel has max 4 alarms
  • RS485 or RS 232 interface, Modbus RTU
  • USB interface
  • Ethernet function available
  • 4 or 8 channels 4~20mA outputs
  • Free data management software view in PC
  • 1~40 channels

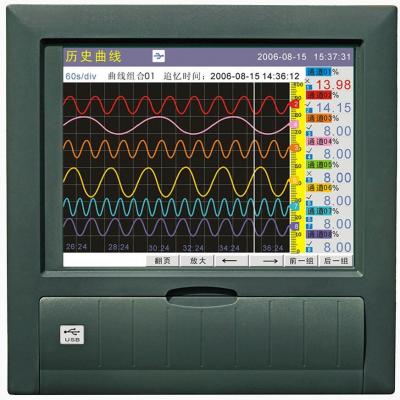

ST800 Series,10.4 inch, color screen

  • Size: 10.4 inch, LCD display (800×600 points)
  • Dimensions: 288 (W) × 288 (H) × 254 (D) mm
  • Display Color: Color
  • 4 universal channels, extended to 48 channels, each channel is well isolated
  • Each channel has max 4 alarms
  • RS485 or RS 232 interface, Modbus RTU
  • USB interface
  • SD card available
  • Mathematic function
  • Ethernet function available
  • 4 or 8 channels 4~20mA outputs, Maximum load: 750Ω
  • Free data management software view in PC
  • 1~48 channels

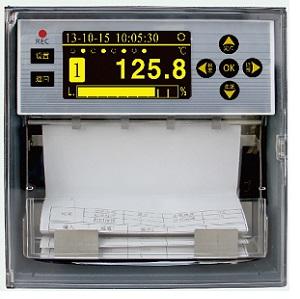

SX3000 Series chart recorder/Paper recorder

  • Vibration-resistant thermal printer
  • Rich display, such as chart, timing, alarm
  • 4 channels Chart recorder, max 8 channels inputs
  • A maximum of 8 relay alarms
  • USB interface 4-20mA output
  • No data will be missing in a power failure
  • 1~8 channels paper recorder

  • SX 2000 Paperless RecorderSX 2000 Paperless Recorder2017/04/12Monochrome paperless recorder has 1-4 channel universal inputs.3.5 inch size. Low cost paperless graphic recorders. Get the Price now.view
  • SX 5000 Paperless RecorderSX 5000 Paperless Recorder2017/04/12SX5000 blue-screen paperless recorder has max 16-channel universal inputs. 5.6" size.RS485 and USB interface .Get the price now.view
  • SX 6000 Paperless RecorderSX 6000 Paperless Recorder2017/04/12SX6000 color-screen paperless recorder has max 16-channel universal input. 5.6" size .Chartless Recorder with RS485, USB,E-thernet options. Contact us for price.view

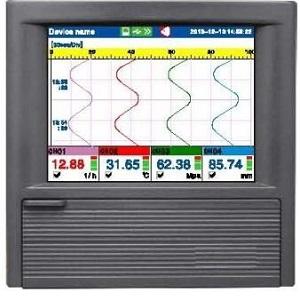

  • ST100 Color paperless recorderST100 Color paperless recorder2019/03/12Color LCD display paperless graphical recorder, 3.5 inches,1~4 channels universal input,SD card optionview
  • ST800 Paperless RecorderST800 Paperless Recorder2017/04/12ST800 color-screen paperless recorder has max 48-channel universal inputs.10.4" size. E-thernet,SD card, USB interface,RS485 functions options.view
  • SX 3000 Chart Recorder/Paper RecorderSX 3000 Chart Recorder/Paper Recorder2017/05/27Paper recorder is with max 8 channels inputs.Get the Price now from China paperless recorder manufacture in low price.view
