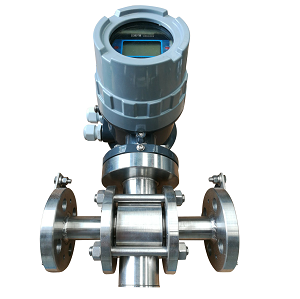

Low flow magnetic flow meter

Low flow mag meters can handle liquid flow as low as to 0.33 LPM (0.09GPM), the mini mag flow sensor size we can provide is 1/8”,1/4”,3/8”,1/2”,3/4”. Micro flow magnetic flow meters are used widely in chemical or fertilizer injection industries.

Low flow mag flow meter flow range and Size

Size mm          size (inch)    Flow range( m3/h)         Flow range(GPM)

4mm               1/8”            0.02-0.4m³/h              0.09- 1.76 GPM

6mm               1/4”            0.05-1 m³/h               0.22-4.4 GPM

10mm              3/8”           0.14-2.7 m³/h             0.62-11.89 GPM

15mm              1/2”           0.3-6 m³/h                1.32-26.42 GPM

Features of low flow magnetic flow meter

✔ No moving parts inside flow meter sensor
✔ Suitable for small size liquid measurement at low flow rate
✔ Beside water flow , it can measure strong aggressive and corrosive liquid, such as HCL, H₂SO₄,  caustic soda,  Phosphoric acid, hydrofluoric acid (HF acid),nitric acid.,etc
✔ All stainless steel material electromagnetic flow meter
✔ Digital display to show instant flow and total flow
✔ In-line type miniature mag flow meter
✔ Flow range:0.5~10 m/s
✔ Forward and reverse flow measurement, bi-directional flow meter
